pu wheel with cast iron center from China manufacturer - Ningbo Best Polyurethane Co., Ltd.

Price:	2.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: HAVB

Production Capacity: 1000 pcs/ week

Delivery Date: 30-45 days

Hardness: 92 shore A

Wheel center: cast iron

Bonding: firmly bonding

Temperature range: -30℃+80℃

Means of Transport: Ocean,Land,Air

Packing: wooden case packing, carton...

Polyurethane colour: yellow,brown,green,red

Painting: black,sliver

Bearing: ball bearing

Working speed: 4km/h

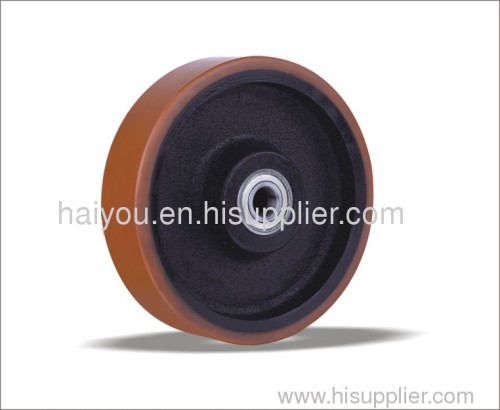

Polyurethane Wheels With Cast Iron Centre
1.Tread: Polyurethane
2.Wheel Centre: Cast Iron
3.Color: Red,Green,Brown, Black, Yellow and so on

Polyurethane Wheels With Cast Iron Centre

Product Parameters

Product Picture

More Product

Established in 1989, our company, a Sino-Foreign joint venture, covers an area of 35,000 square meters . The Chinese Ministry of Foreign Trade and Economic Cooperation awarded our company special import-export trading privileges. Your ability to deal directly with our production company coupled with the superior quality of our products puts us in a position to offer you the highest quality products at the lowest competitive prices possibly. If you have any questions about our products or specific requests, please contact us. We look forward to establishing a warm and mutually beneficial association. Thank you for your time.

♦ Certificate

♦ Exhibition

Delivery and Payment:

We accept L/C,D/P,T/T,Westunion,Paypal all payment types if you have enough good credit.

1.Hardness: 92A
2.Diameter Range: 80-400mm
3.Load capacity: 180-3500kgs
4.Tensile strength: 33Mpa
5.Elongation at break: 690%
6.Rebound resilience: 26%

ReferenceNumber	A-Wheel	B-Tread	C-Hub	D-Hub	E-Centre	F-Bore	Load
	dia.	width	length	dia.	dia.	dia.	capacity
	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kgs)
PC80×25×25	82	25	25	43	70	35	180
PC82×34×34	82	34	34	42	70	32	200
PC100×30×30	100	30	30	46	86	35	250
PC100×30×39	100	30	39	48	84	35	250
PC125×30×30	125	30	30	44	110	35	300
PC125×30×35	125	30	35	47	106	35	300
PC125×30×39	125	30	39	52	110	35	300
PC125×38×38	125	38	38	52	110	40	300
PC125×38×60	125	38	60	66	110	47	400
PC125×40×50	125	40	50	66	110	47	400
PC125×50×50	125	50	50	66	110	47	400
PC125×50×60	125	50	60	66	110	47	450
PC140×60×68	140	60	68	69	115	52	700
PC150×38×60	150	38	60	70	134	47	750
PC150×40×40	150	40	40	52	133	40	400
PC150×40×50	150	40	50	60	131	47	500
PC150×50×50	150	50	50	70	134	47	800
PC150×50×50D	150	50	50	70	134	52	800
PC150×50×60	150	50	60	70	134	47	800
PC150×50×60D	150	50	60	70	134	52	800
PC150×75×82	150	75	82	75	115	52	1200
PC160×47×50	160	47	50	60	145	47	800
PC160×50×60	160	50	60	65	134	47	850
PC160×50×60D	160	50	60	65	134	52	850
PC173×60×54	173	60	54	60	160	47	700
PC175×40×40	175	40	40	61	155	47	700
PC175×50×49	175	50	49	63	153	47	700
PC180×50×50	180	50	50	60	165	47	850
PC180×50×60	180	50	60	65	160	47	900
PC180×50×60D	180	50	60	65	160	52	900
PC180×70×70	180	70	70	70	166	52	1200
PC200×45×60	200	45	60	70	180	47	950
PC200×50×50	200	50	50	60	185	47	950
PC200×50×60	200	50	60	70	180	47	1000
PC200×50×60D	200	50	60	70	180	52	1000
PC200×75×82	200	75	82	75	165	52	1400
PC200×80×80	200	80	80	80	160	62	1400
PC200×100×100	200	100	100	88	170	62	1600
PC250×45×60	250	45	60	80	230	52	1250
PC250×50×60	250	50	60	80	230	52	1300
PC250×60×73	250	60	73	77	214	52	1400
PC250×75×82	250	75	82	75	210	52	1600
PC250×100×100	250	100	100	94	225	62	1800
PC300×45×60	300	45	60	80	280	52	1450
PC300×50×60	300	50	60	80	280	52	1500
PC300×70×73	300	70	73	102	262	72	2000
PC300×75×82	300	75	82	75	268	52	2000
PC300×90×100	300	90	100	88	250	62	2500
PC300×100×100	300	100	100	88	265	62	2800
PC400×75×82	400	75	82	75	350	52	2100
PC400×100×120	400	100	120	126	350	90	3500
